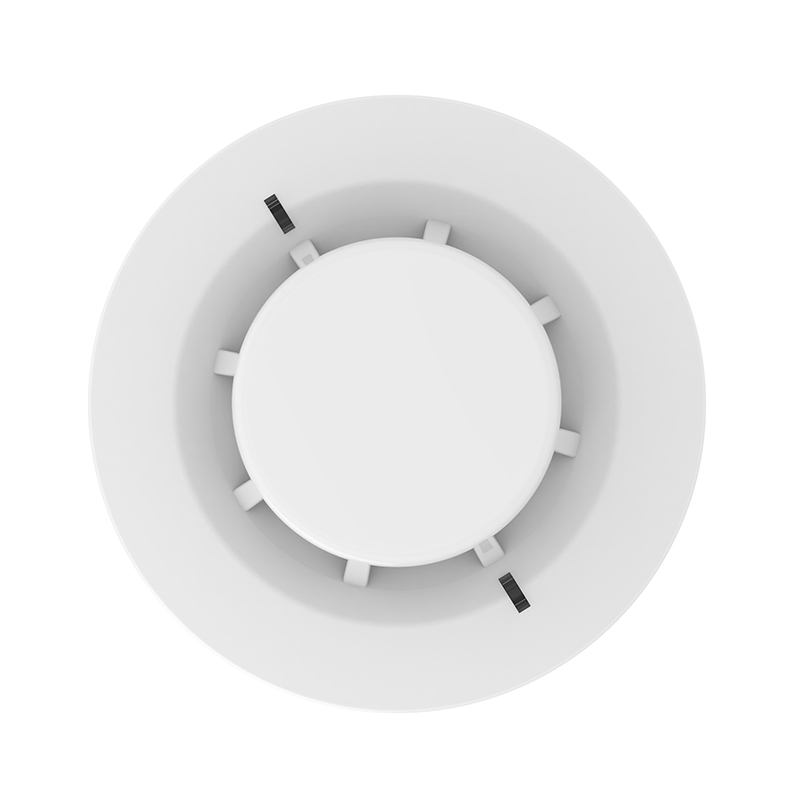

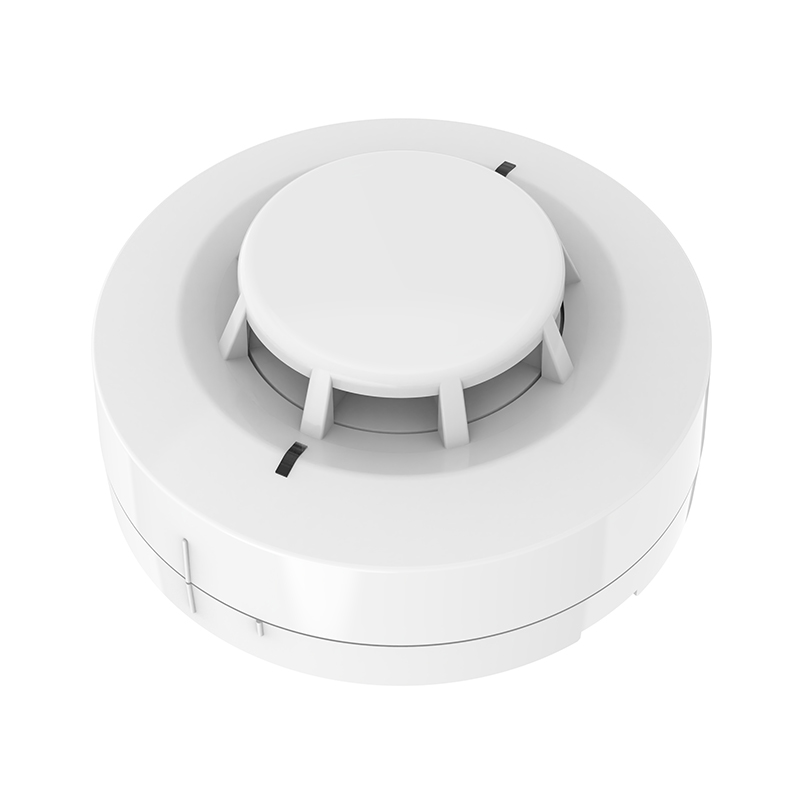

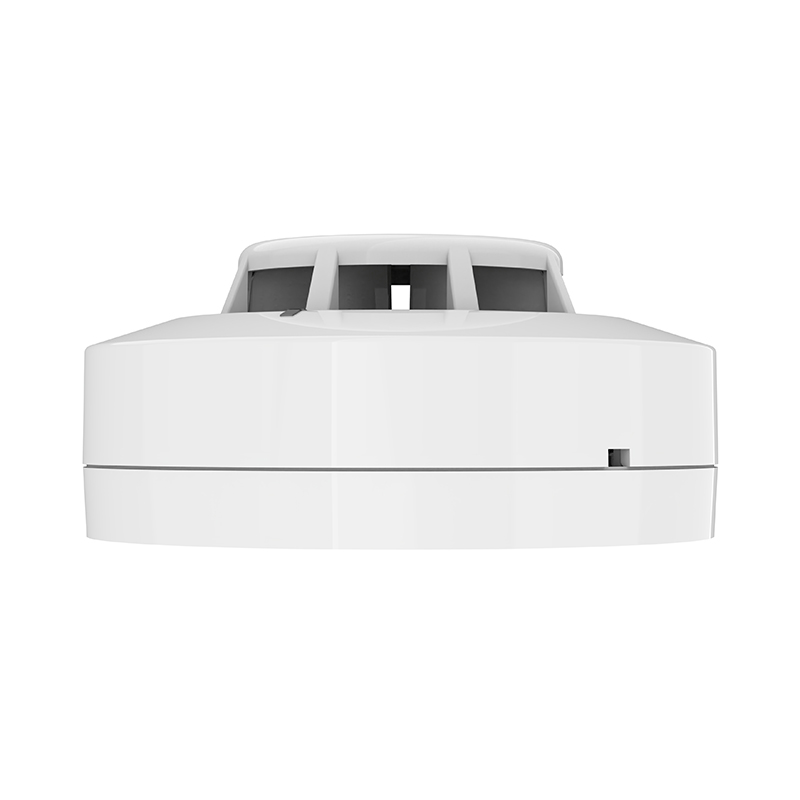

CLY713U-BR
| Type: | 4-wire heat detector |
| tem No. : | WT531-4-24 |
| 2/4 wire: | 4 |
| Standby Current: | 45μA |
| Alarm Current: | 45mA |
| Surge Current: | 500μA |
| Star-Up Time: | 30 Seconds |
| Permissible Current: | — |
| Frequency: | 1- 3Seconds |
| Response Temperature: | Fixed termperature: 57°C (135°F) Rate-of-Rise: A2R (EN54-5) ; or 8°C/Min (UL521) |
| Ceiling Spacing: | 50 foot rating for heat sensor |
| Reset Voltage: | less than 1 volt |
| Alarm Indicator: | LED continuously emitting red light |
| Remote Output: | Voltage output |
| Temperature Range: | -10°C to 50°C |
| Permissible Current: | 100mA maximum |
| Humidity: | 0 to 95% RH, no condensation or icing |
| Alarm Contact: | (for 4-wire) NO or NC Operation, Form A: 1. 0A@30VDC/0. 5A@125VAC |
| Dimensions: | Φ 100 mm × 38 mm |

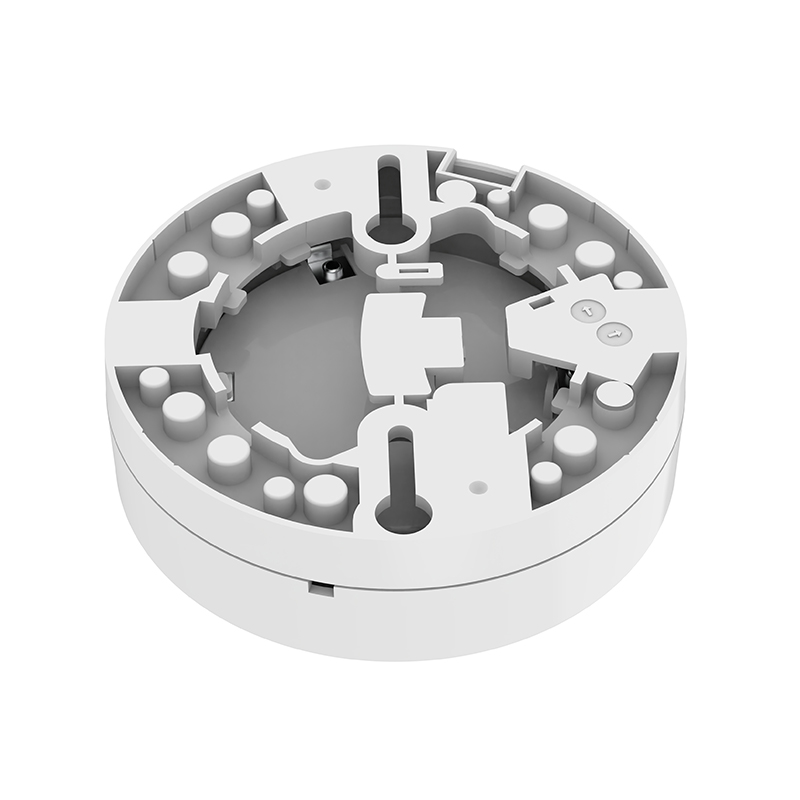

| Weight: | 120g/set with base |
